Soldering Station for Electronics Repair: A UK Workshop Guide

Triage the repair before heating anything

A Repair Café may see a lamp, toy, headphones and Christmas lights in the same afternoon. Start by deciding whether the item is suitable for volunteer repair, whether stored energy or mains wiring is present, and whether a competent person is needed. Disconnect power, remove batteries where the service method allows, and do not use a soldering station as a reason to work live.

For low-voltage electronics, group jobs by joint size. Fine PCB pads need a controlled tip and a steady hand; large wire terminals need more contact area and thermal capacity. A station that can serve both through sensible tip changes is more useful than a tiny conical tip driven unnecessarily hot.

Choose the tip before choosing the wattage headline

Hakko's published tip-selection guidance explains that contact area and the thermal capacity of the board and component affect heat transfer. A tip that is too small transfers heat poorly; one larger than the land can overheat it. This is a better buying framework than assuming a bigger wattage number fixes every joint.

Check which shapes are genuinely available for the exact handpiece: a small chisel for general PCB work, a broader chisel for wire terminals and a shape that can be replaced without retiring the station. Keep a simple tip inventory rather than letting volunteers mix unknown parts.

Shared-bench controls should be obvious

A large, readable display and simple controls help a new volunteer use the shared bench consistently. Label a normal starting procedure, not a permanent “correct temperature”. The appropriate setting changes with solder, tip, joint and board. Record who checked the lead, stand, tip condition and extraction before the session.

• Use a stable stand that cannot be mistaken for a parts tray.
• Keep the hot zone clear and route the silicone lead away from visitors.
• Provide a damp sponge or brass cleaner appropriate to the tip maker's instructions.
• Allow the station to cool before packing it for the next monthly event.

Control flux fume at source

The HSE identifies rosin-based solder flux fume as a cause of occupational asthma. Its guidance says to keep the head out of the plume, use extraction and maintain the system. In a community workshop, “the hall is large” is not a substitute for checking that the control actually captures the plume where the joint is made.

For repeated organised activity, the responsible organiser should complete a site-specific COSHH assessment. The HSE's electronics example explicitly says it is not a generic assessment that can simply have the organisation name changed.

What the current listing does and does not establish

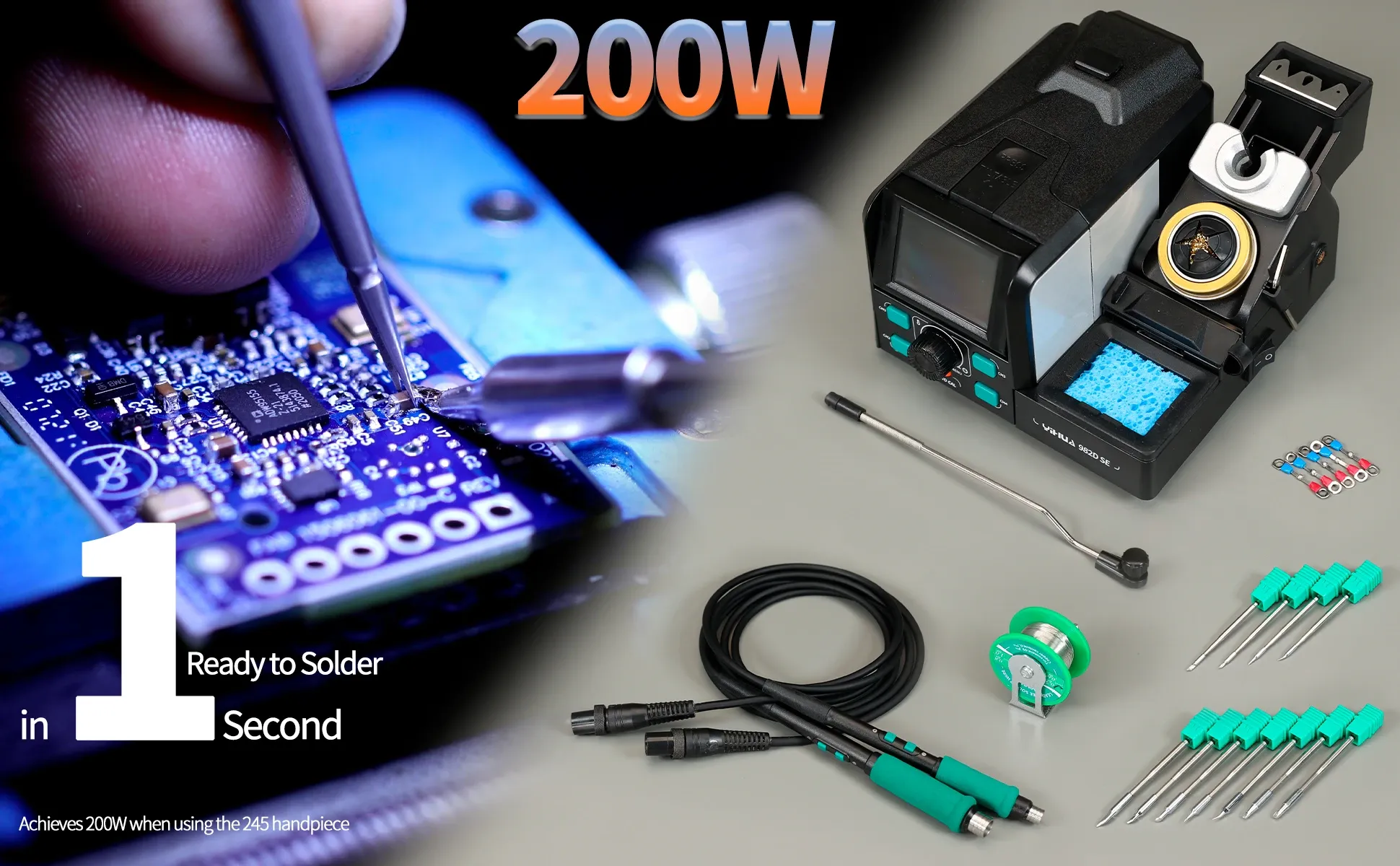

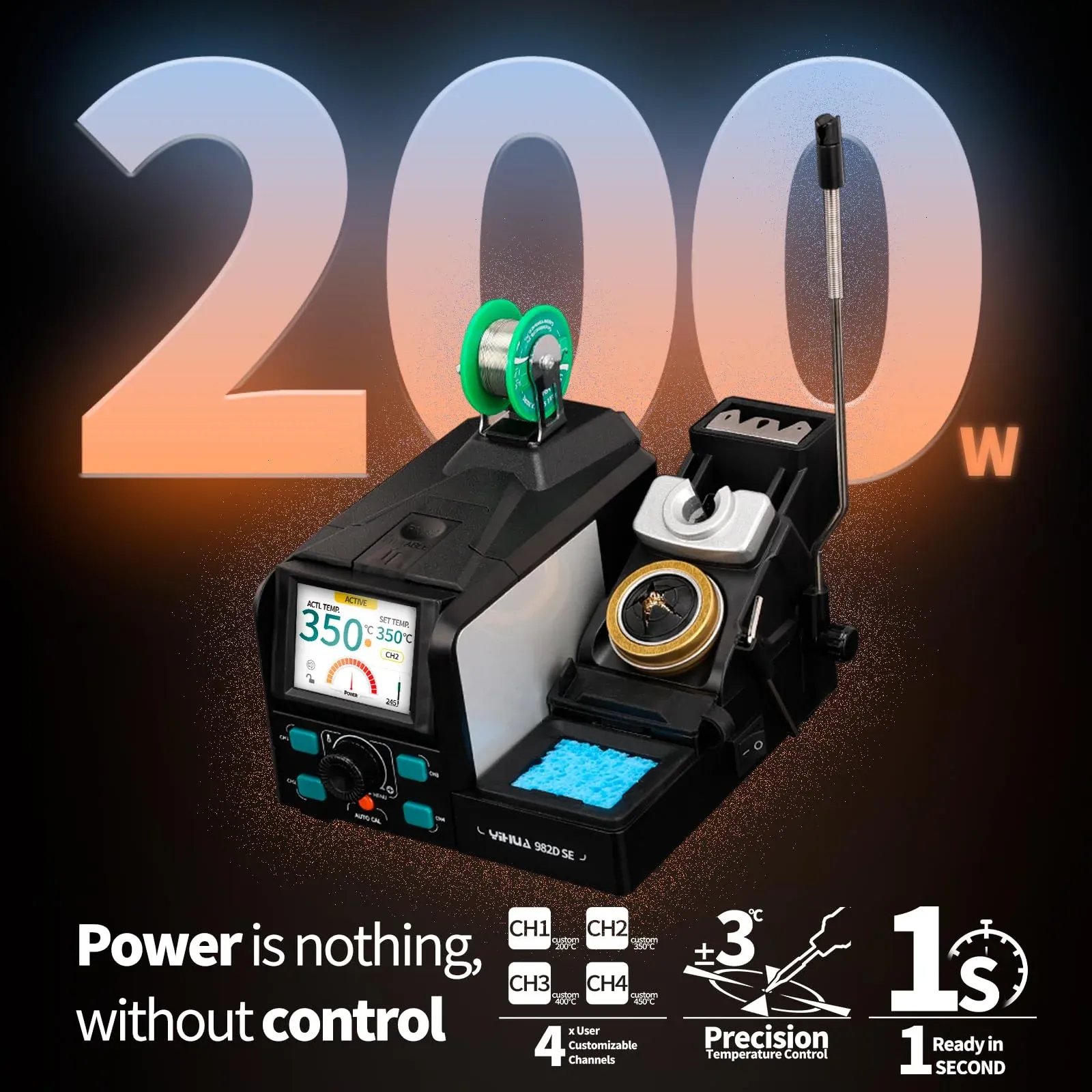

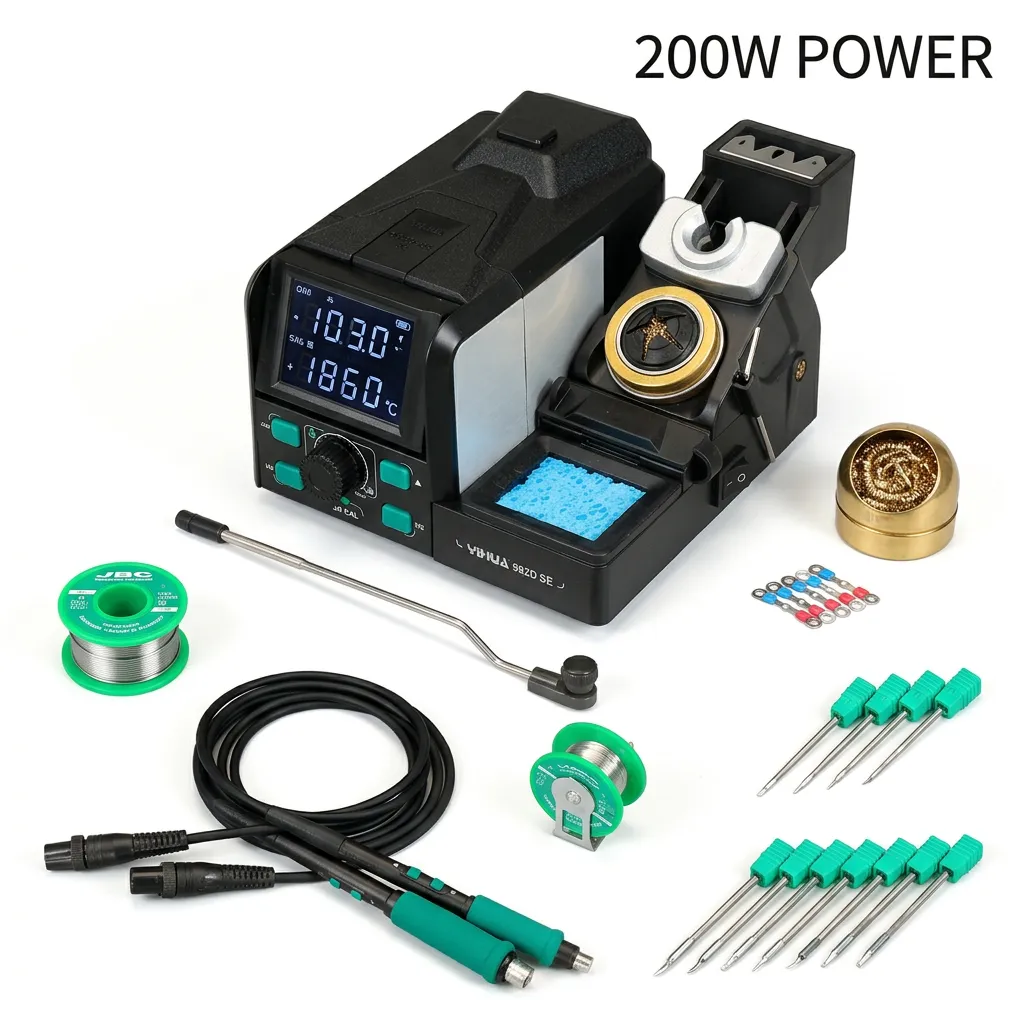

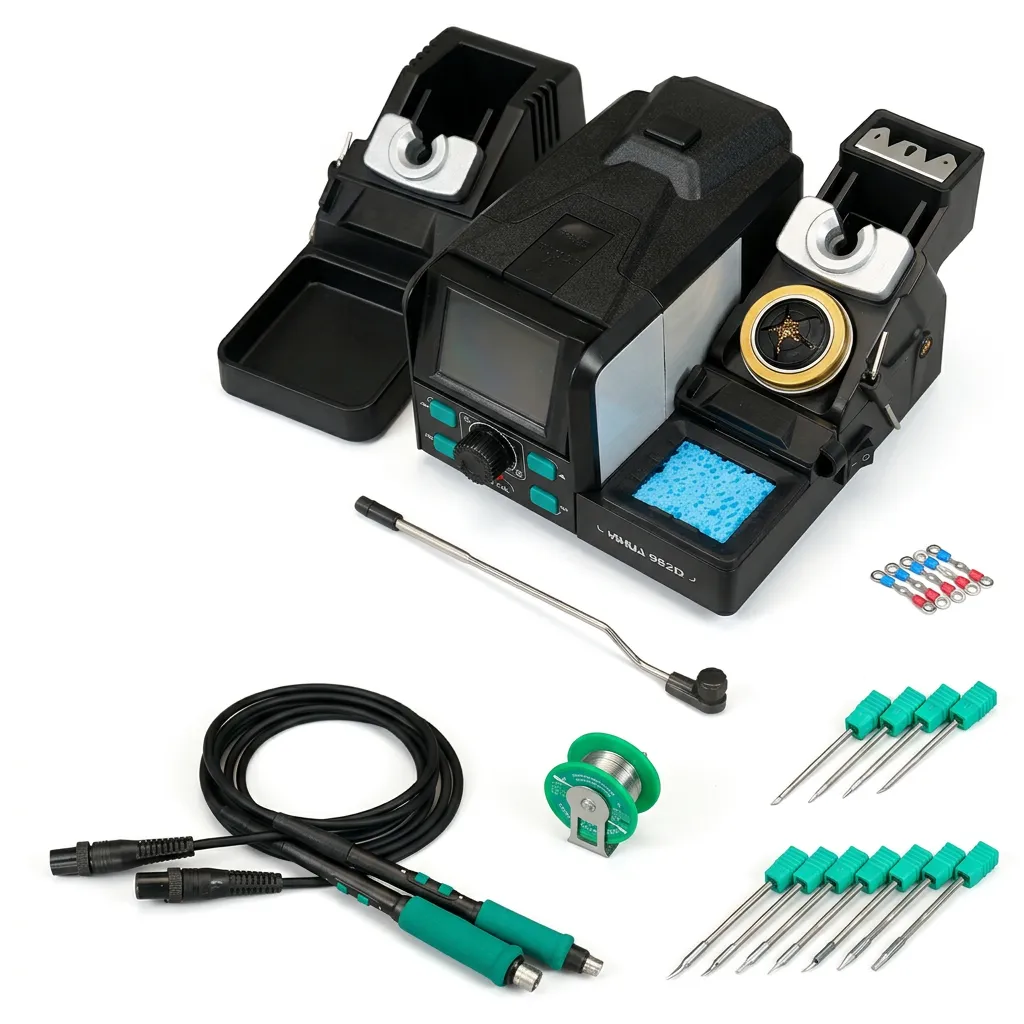

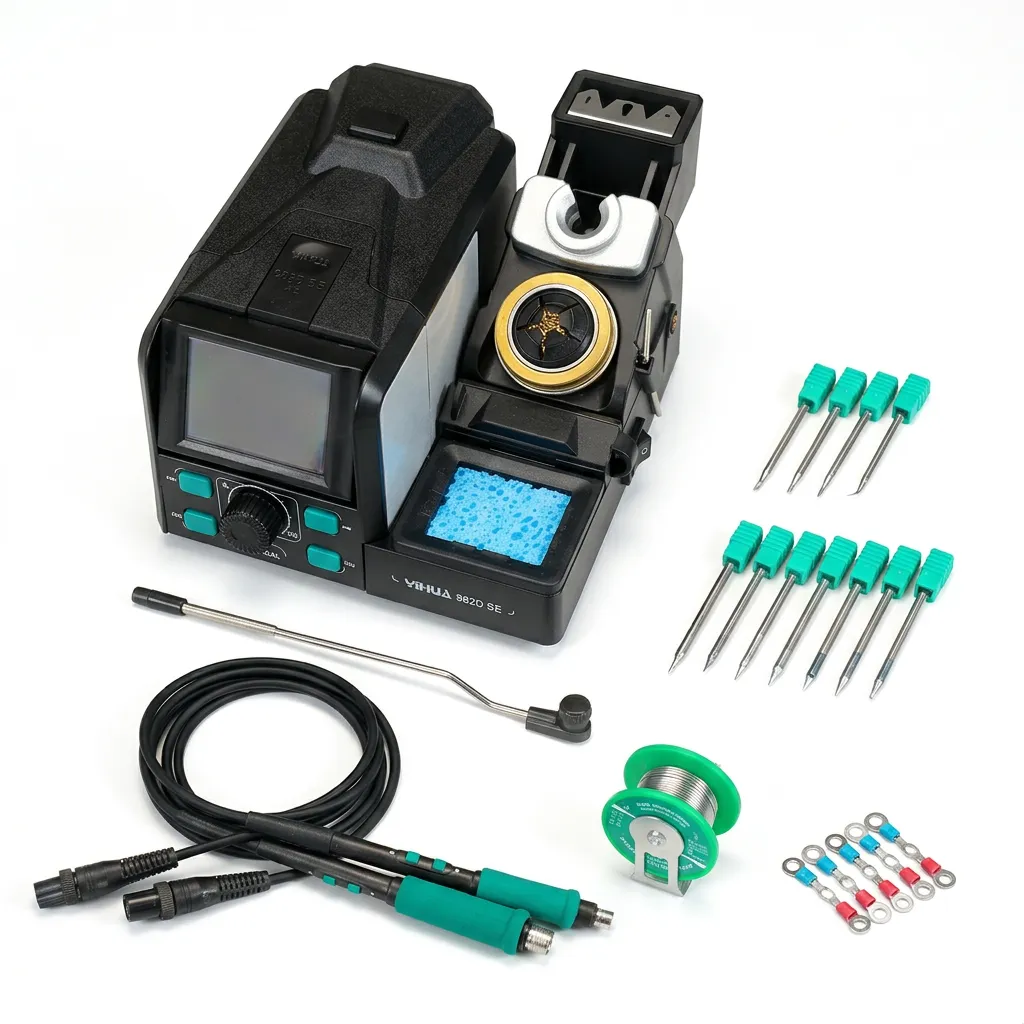

The current Yihua Maker product page lists £657.21. Its model identity conflicts across the title, heading and description, so it cannot be used here as proof of wattage, tip family, warranty or suitability. Check the current listing, packaging and manual before a committee spends shared funds.

For a lower-cost personal bench, read the soldering station under £100 UK guide. For organised sessions, pair any equipment decision with the classroom and group risk-assessment guide.
